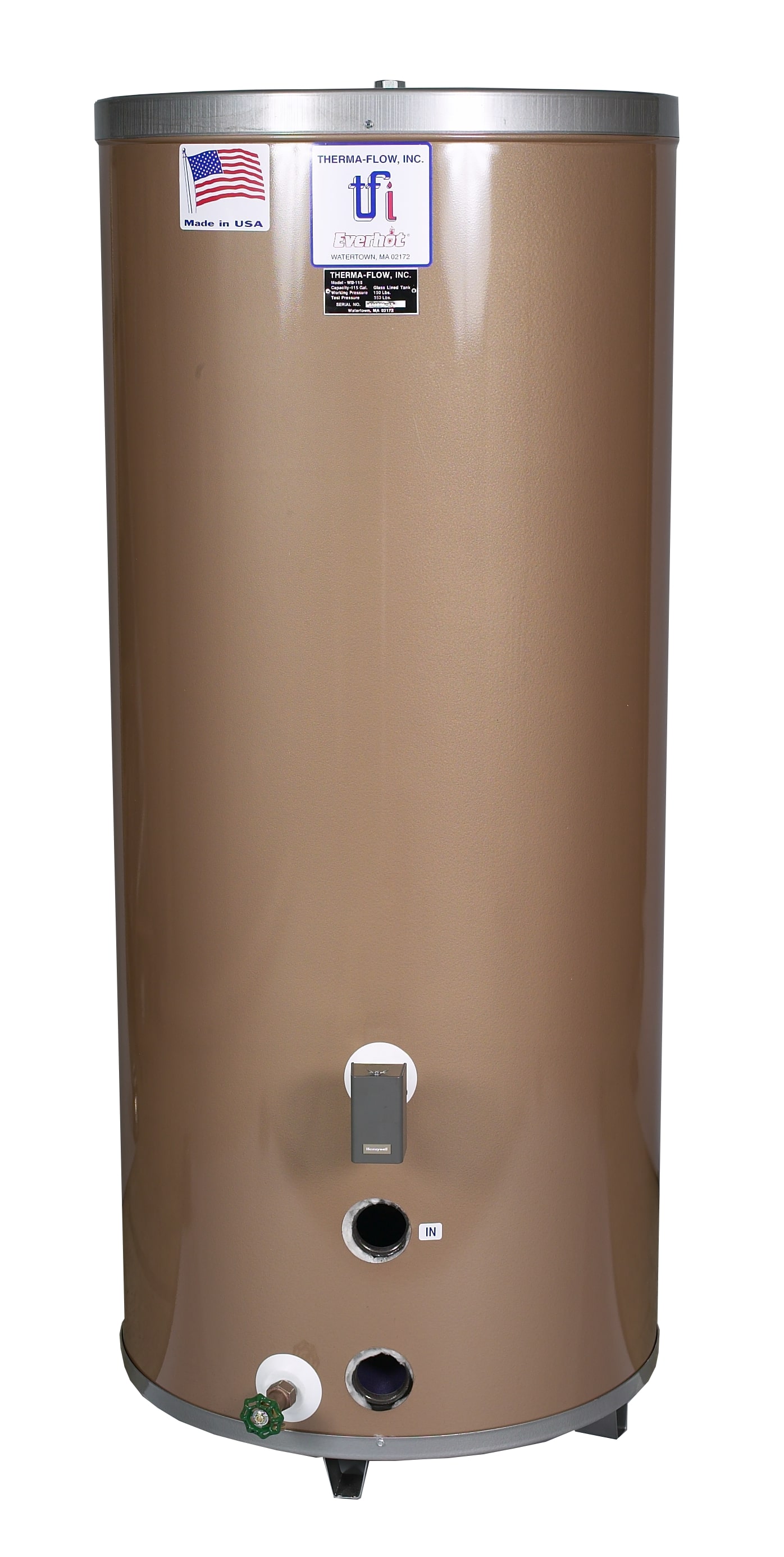

Hot Water Storage Booster Tanks

GLASS LINED MODELS

Therma-Flow/Everhot Series Hot Water Boosters assure ample supply of stored hot water for the most demanding draws, i.e., showers, bathtubs, dishwasher, washing machines, jacuzzis, etc.

Therma-Flow/Everhot Series Hot Water Boosters have been specifically designed to eliminate service problems. All fittings have been positioned for front access, enabling the units to be conveniently installed even in tight corners. In addition, the anode rod can be removed without dismantling the jacket top and related water pipe connections.

The installation of a Therma-Flow/Everhot Hot Water Booster will enable the present boiler to operate at a lower temperature, thereby reducing overall fuel consumption.

STANDARD FEATURES TANK ONLY:

Brass nipples for water connection standard *NEW*
Removable anode rode *NEW*
Factory installed brass combination fitting
High density fiberglass installation
Heavy gauge steel jacket with decorative acrylic enamel finish
Made in the U.S.A.

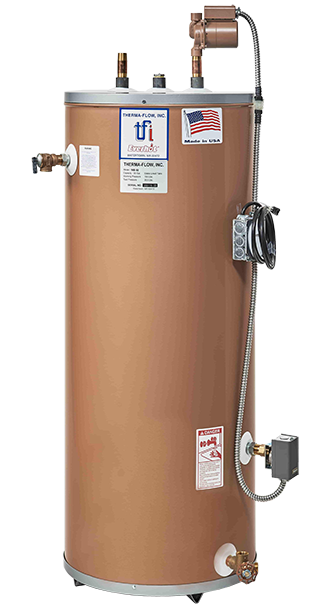

OPTIONAL EQUIPMENT: WB PUMP KIT

Brass Well (AW-4)
Honeywell immersion type aquastat L4080B
Taco 006 Stainless Steel Circulator

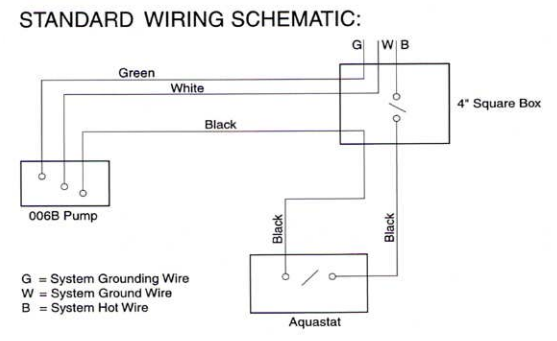

THERMA-FLOW OFFERS AN OPTIONAL "QUICK CONNECT" WIRING PACKAGE FOR HOT WATER BOOSTERS

THE FAST, NO HASSLE SOLUTION TO WIRING THERMA-FLOWS HOT WATER BOOSTERS!
QUICK CONNECT COMPONENTS INCLUDE:

Honeywell immersion type aquastat L4080B
Taco 006 Stainless circulator
Appliance cord
Junction Box

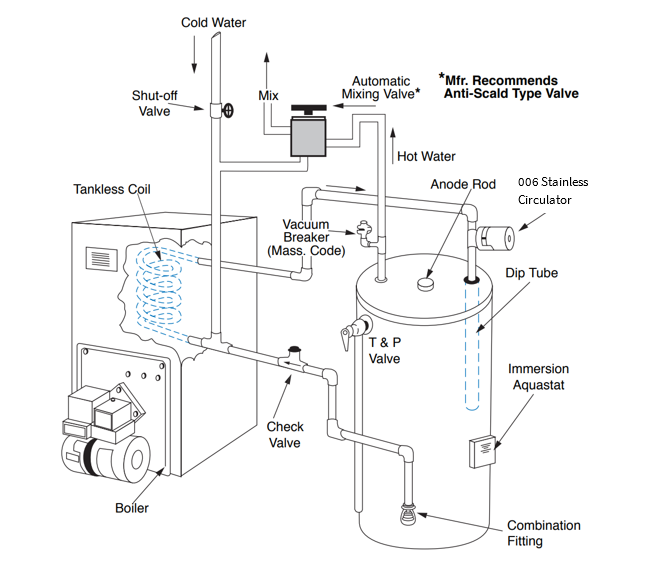

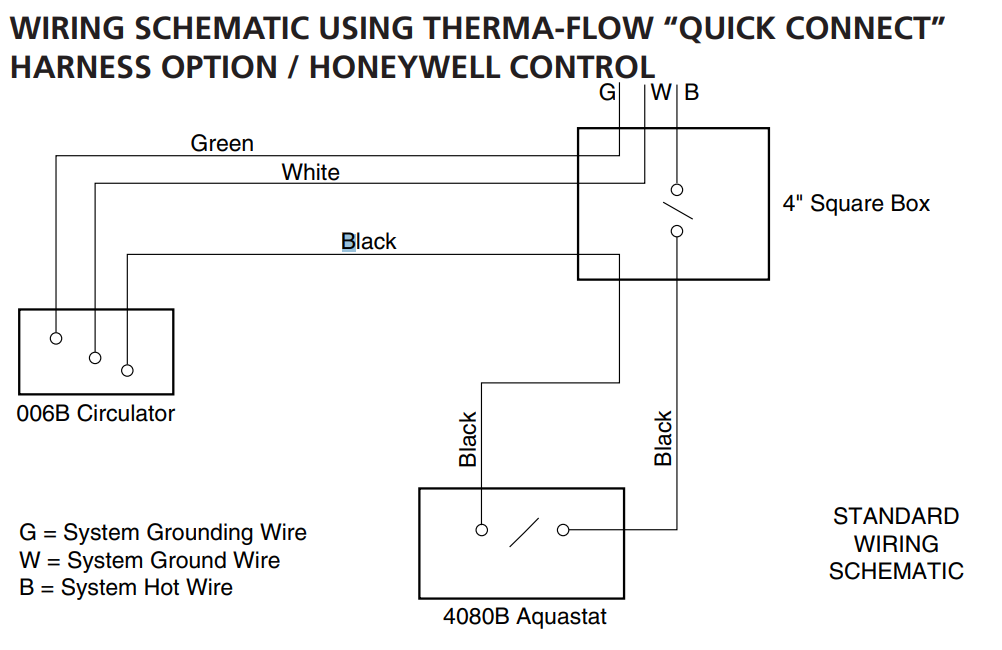

Spend just a few minutes mounting the aquastat control and junction box as shown. Install the bronze circulator, supplied fully pre-wired. Mate the snap-in "Quick Connect" electrical terminal from circulator to junction box and you're done.

It's fast, it's easy, It's the most convenient and economical way to install our glass-lined hot water boosters.

Each "Quick Connect" kit is prewired and includes the aquastat, junction box special "Quick Connect" terminal, circulator, and heavy-duty appliance cord. Everything is designed for you to mount quickly and connect quickly to the nearest appropriate 115-volt receptacle. Ask for the "Quick Connect" wiring package when ordering our WB models of hot water boosters.

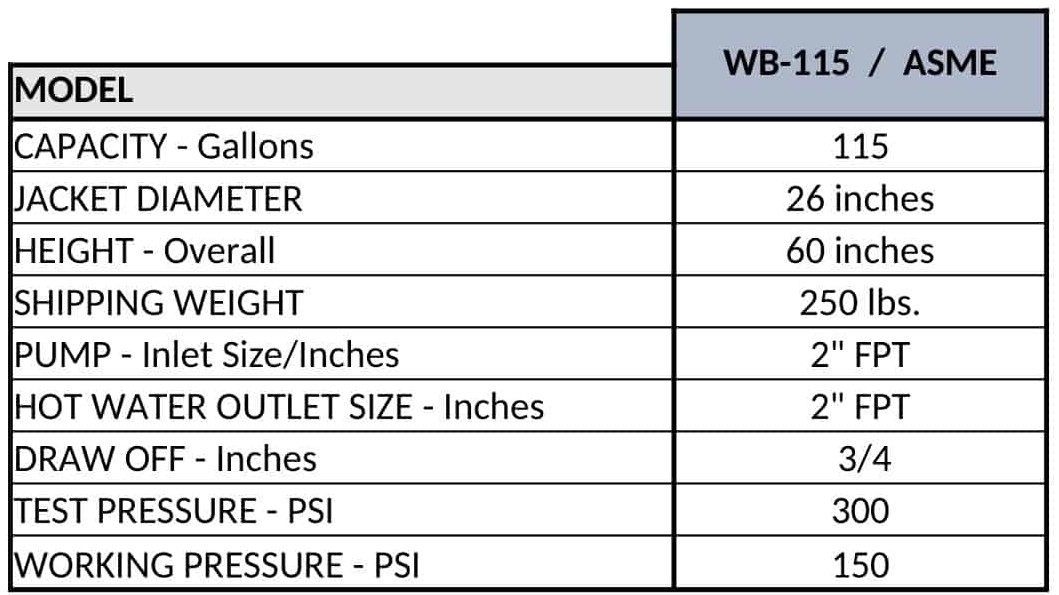

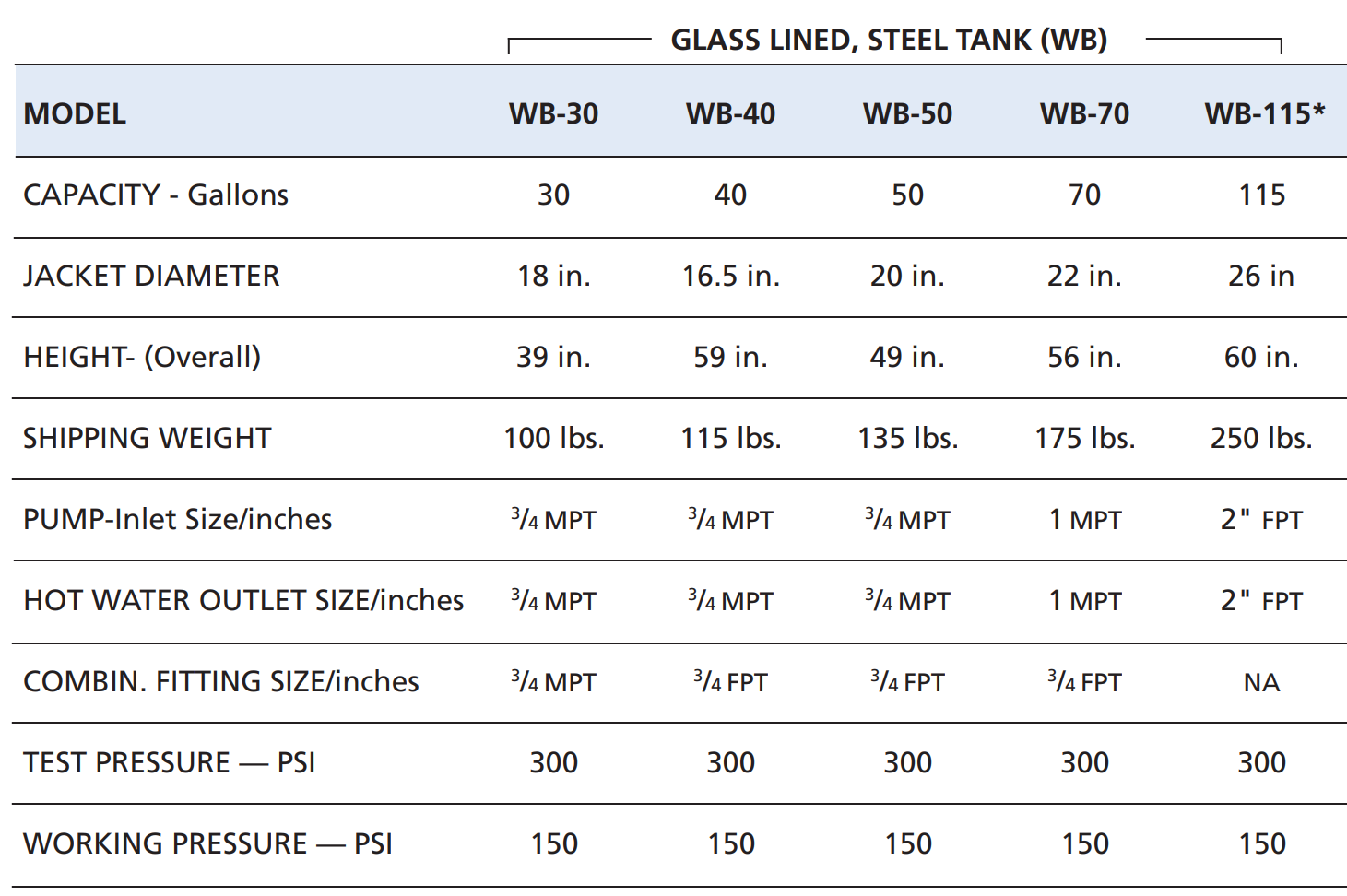

SPECIFICATIONS: Therma-Flow/Everhot Tankless Hot Water Storage Boosters

*The maximum hot water temperature setting for normal residential use is 120-degree Fahrenheit. TFI recommends anti-scald type valve to be installed.
*Installation should be in accordance with all national and local codes.

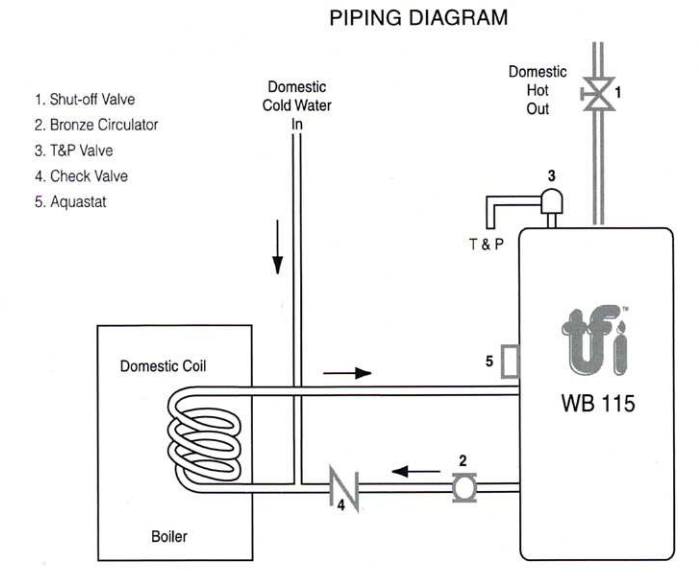

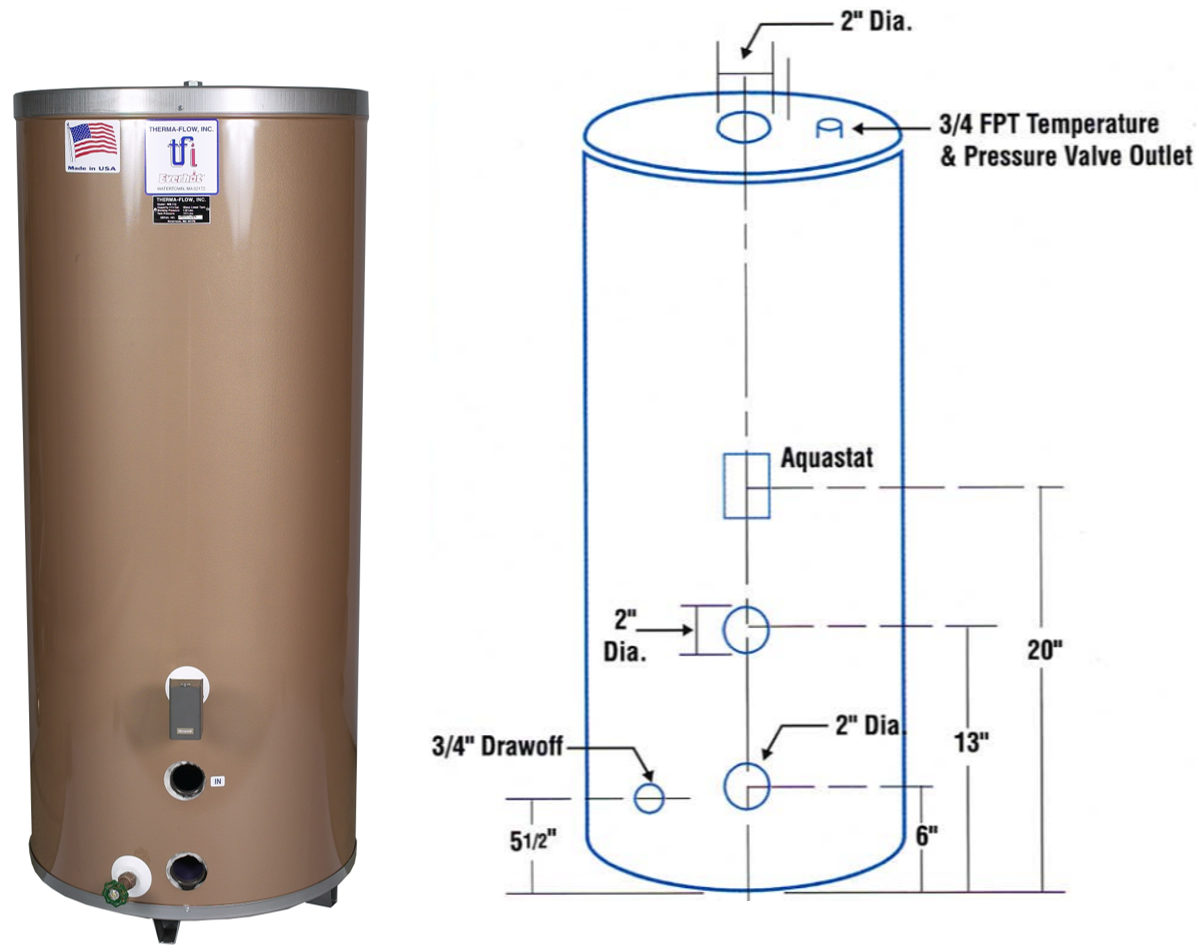

*For Glass-Lined Model WB-115: the piping outlet locations are slightly different from those shown in the diagram.
