Glass Lined Oil-Fired Water Heaters

Therma-Flow Oil Fired Water Heaters are designed and built to provide the homeowner and commercial user with dependable, highly efficient, production of hot water.

Therma-Flow Oil Fired Water Heaters are compliant with Department of Energy requirements. These units are tested by an independent government certified laboratory to assure that our water heaters achieve the highest possible ratings for both efficiency and reliable hot water flow.

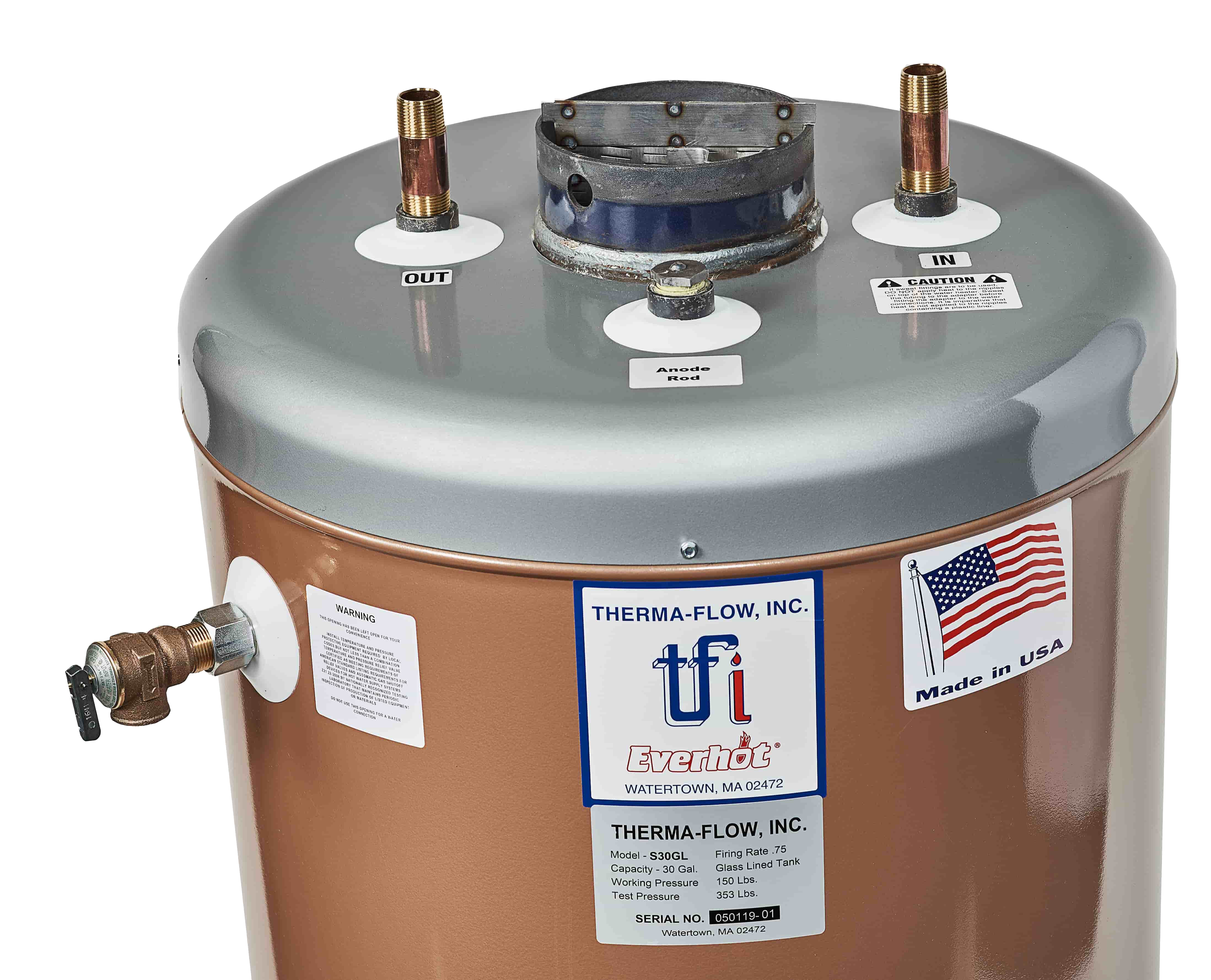

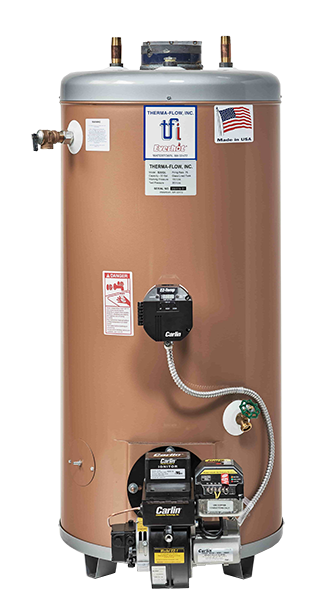

CENTER FLUE MODELS – 30 & 50 Gallon Tanks

• UEF testing approved for DOE
• Only Center Flue manufactured with 2" high density foam insulation
  • R-Value (14) Closed cell UL 94 Approved
• Brass nipple connection Diptube and Hot Water outlet *NEW*
• Unique exposed couplings for leak detection *NEW*
• Easy access to magnesium rod for replacement – 2 anode rod *NEW*
• 409 stainless steel baffle for greater heat conduction
• Carlin Dual Aquastat 90000B10S1 designed for precise temperatures and safety features
• Factory installed brass drawoff
• Factory installed brass well for aquastat
• Heavy duty glass lined steel tank – Cobalt Porcelain Enamel
• Attractive baked enamel steel jacket
• Made in the U.S.A.

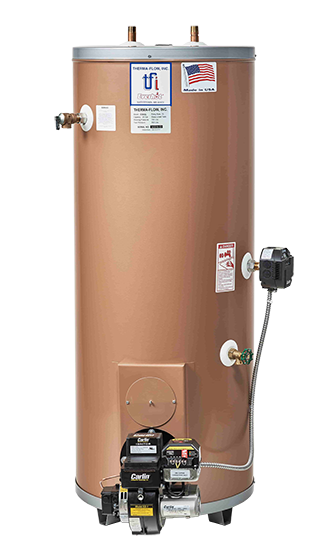

REAR FLUE MODELS – 30, 50 & 70 Gallon Tanks

• UEF testing approved for DOE
• Brass nipple connection Diptube and Hot Water outlet *NEW*
• 2" high density blanket-type insulation for the rear flue model
• Easy access to magnesium rod for replacement – 1 anode rod
• Factory installed brass drawoff
• Factory installed brass well for aquastat
• Heavy duty glass lined steel tank – Cobalt Porcelain Enamel
• Large observation door for efficiency testing
• Attractive baked enamel steel jacket
• Made in the U.S.A.

THERMA-FLOW OIL FIRED WATER HEATERS OIL BURNER PACKAGE:

• Burners are packages for ease of installation
• Quality, fuel efficient Carlin or Beckett flame retention burner
• Burner and immersion type dual aquastat prewired at factory
• Oil burner nozzle is installed at factory

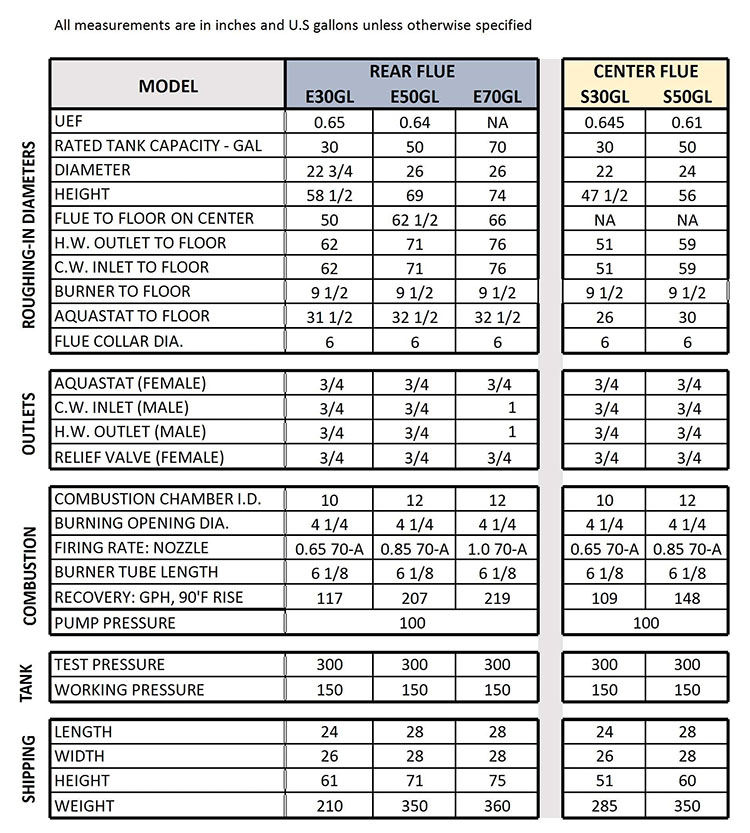

SPECIFICATIONS: THERMA-FLOW GLASS LINED OIL FIRED WATER HEATERS

*The maximum hot water temperature setting for normal residential use is 120-degree Fahrenheit. TFI recommends anti-scald type valve to be installed.
*Installation should be in accordance with all national and local codes.

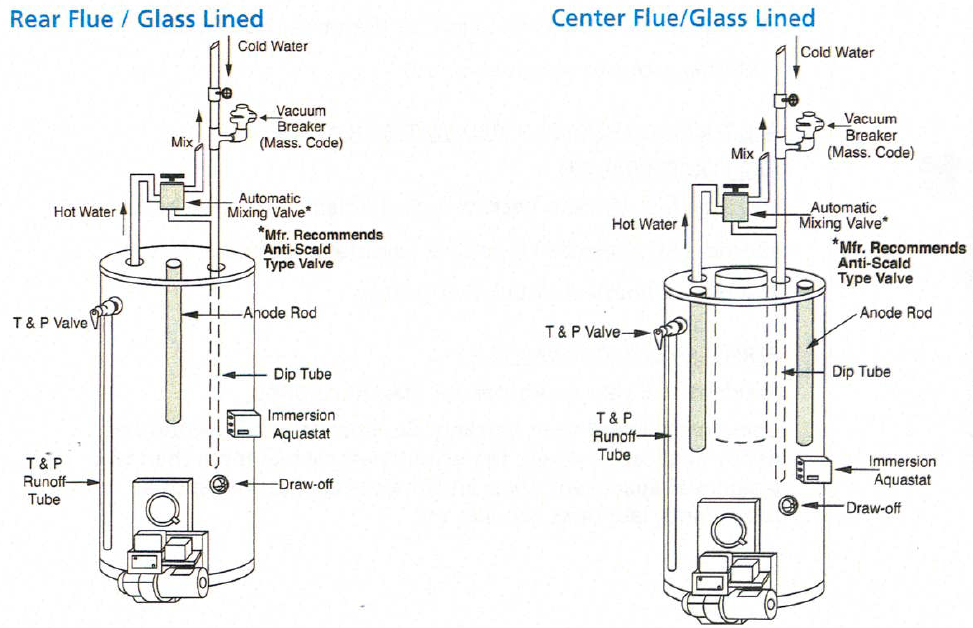

SUGGESTED PIPING:

PERFORMANCE GUARANTEE:

• 5-year guarantee for residential use of glass-lined units
• 1-year guarantee for commercial use of glass-lined units
