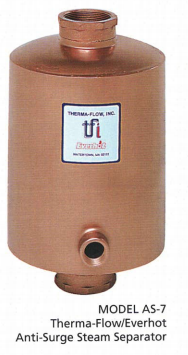

Anti-Surge Steam Separator

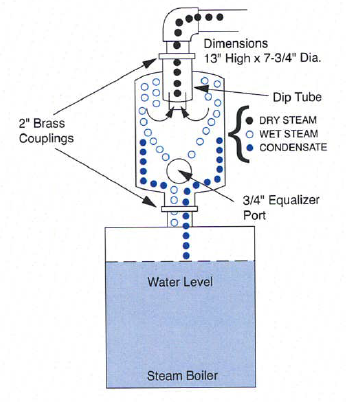

Engineered to eliminate surging and priming problems associated with fast recovery, low water content, steam boilers.

CONSTRUCTION:

• All Copper Construction
• Heavy Duty Brass Fittings
• Exclusive ¾" Equalizer Port

AS-7 WORKING FEATURES:

• Allows only dry steam into the system
• Does away with the necessity of costly and repetitive blow downs
• Equalizer Port allows 100% of the boiler to be blown down

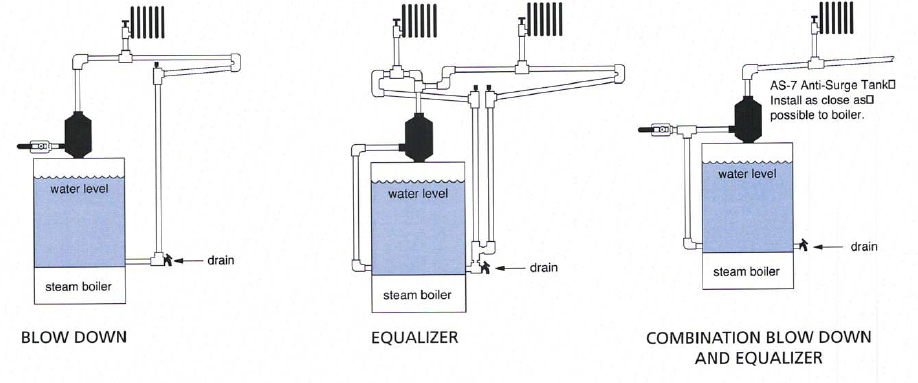

Therma-Flow/Everhot Anti-Surge Steam Separator can be used in any of these installation configurations:
